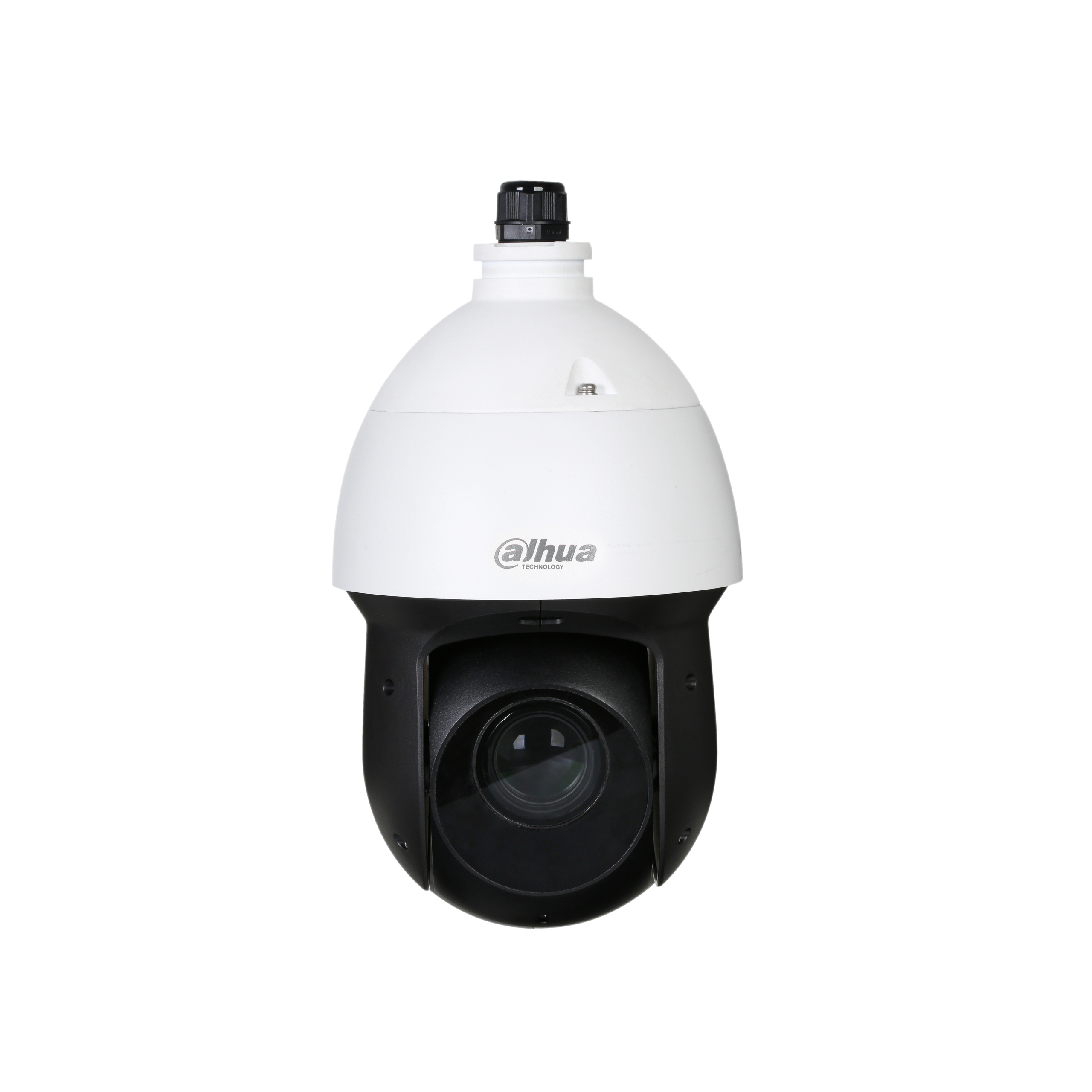

DAHUA PTZ DH-SD499255 Analog PTZ 25x

4MP Starlight Network PTZ Camera (25x Zoom)

Technical Specification

Camera
Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3s~1/30,000s
NTSC: 1/4s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)
S/N Ratio More than 55dB
IR Distance Distance up to 100m (328ft)
IR On/Off Control Auto/Manual
IR LEDs 6

Lens
Focal Length 4.8mm~120mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 62.8° ~ 2.6°
Optical Zoom 25x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm

DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
1613m(5259ft) 646m(2119ft) 323m(1060ft) 161m(528ft)

PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after
power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)

Video
Resolution 1080P(1920×1080)/720P(1280×720)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P

Video Output 1-channel BNC high definition video output/ CVBS
standard definition video output (switchable)
Day/Night Auto(ICR) / Color / B/W
OSD Menu Support
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface 1
Audio Interface 1 channel in
RS485 1
Alarm I/O 2/1

Electrical
Power Supply DC 12V/3A
Power Consumption 13W, 22W (IR on, Heater on)

Environmental
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance N/A

Construction
Casing Metal
Dimensions Φ160(mm) x 295(mm)
Net Weight 3kg(6.61lb)
Gross Weight 4.2kg(9.26lb)
